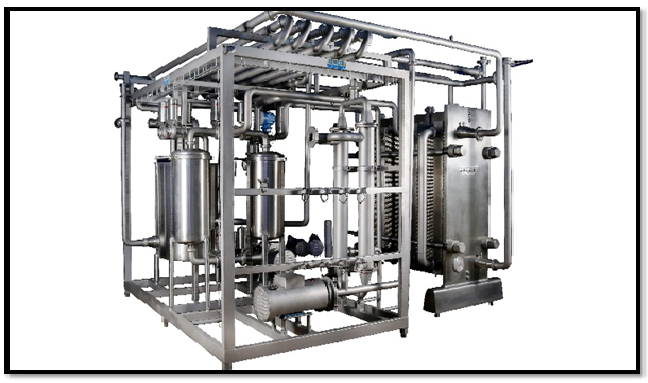

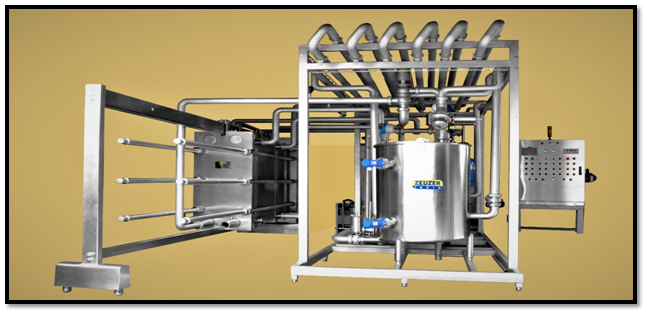

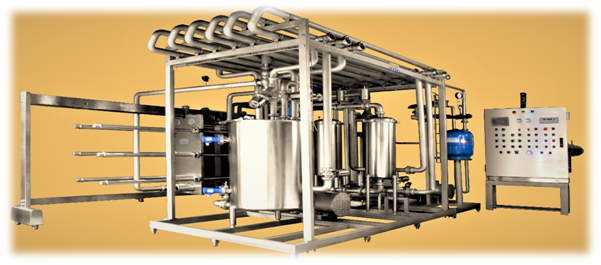

ZEUZER INDIA HTST (high temperature short time) processing plant is designed as per the customer requirements for their standardization of milk. It is the simplest process to pasteurize the whole milk by killing the unwanted micro-organisms and bacteria without any damaging on product.
Zeuzer India delivers the product as per the customer requirements for pasteurization for different applications. The consumers can use the pasteurized milk for their milk products made from milk and cream, even the cultured products are included in this for the better shelf life.
The temperature program is designed as per the inlet and outlet requirement. The processing equipment is also designed with dual programming where inlet can be 4 or 30 deg. C. The holding tube will hold the milk for 2 secs to 360 secs which depends on the product requirement. The plant is also accommodating with the hot water generating system for the inlet of the PHE where the steam is used a heating purpose.
The HTST pasteurization plant has be given a provision for expanding as per the capacity. The ZEUZER INDIA plant can be used for multipurpose pasteurization. The heat generation efficiency is up to 90% to 93%. The plant can be operated on fully automatic or semi-automatic.
Capacity range: 100 LPH – 40,000 LPH
Material of construction : 304 L / 316 L
Automation : PID and PLC
Application : Milk, Curd, Panner, Coconut Milk, Neera, Butter Milk, Cream, Juices, Beer, Ice-Cream mix, Yogurt.
beenhere HIGH HEAT TRANSFER COEFFICIENTS
beenhereOPTIMUM HEAT TRANSFER AREA
beenhereOPTIMIZED HEAT RECOVERY
beenhereCOMPACT CONSTRUCTION
beenhereNO MIXING OF PRODUCTS
beenhereREGENERATION EFFICIENCY: 90-93%
beenhere FLEXIBILITY IN REPLACING THE PLATES
beenhereEASY MAINTENANCE
beenhereLOW FOULING
beenhere CORROSION RESISTANT
beenhereGASKETS TYPE: CLIP-ON, SNAP-ON & GLUED
beenhereMATERIAL- 316 L / 304 L/ TITANIUM
beenhereCOST EFFECTIVE
